module traffic_light(rst,clk,h_red,h_yellow,h_green,b_red,b_yellow,b_green);

  input rst,clk;
  output reg h_red, h_yellow, h_green, b_red, b_yellow,b_green;
  reg [4:0] count;
  reg [1:0] state;
  parameter s0=0,s1=1,s2=2,s3=3;
  initial state=0;
  initial count=0;
  initial h_red=0;
  initial h_yellow=0;
  initial h_green=0;
  initial b_red=0;
  initial b_yellow=0;
  initial b_green=0;
  always @(posedge clk) begin
    if(rst)
      state=s0;
    else

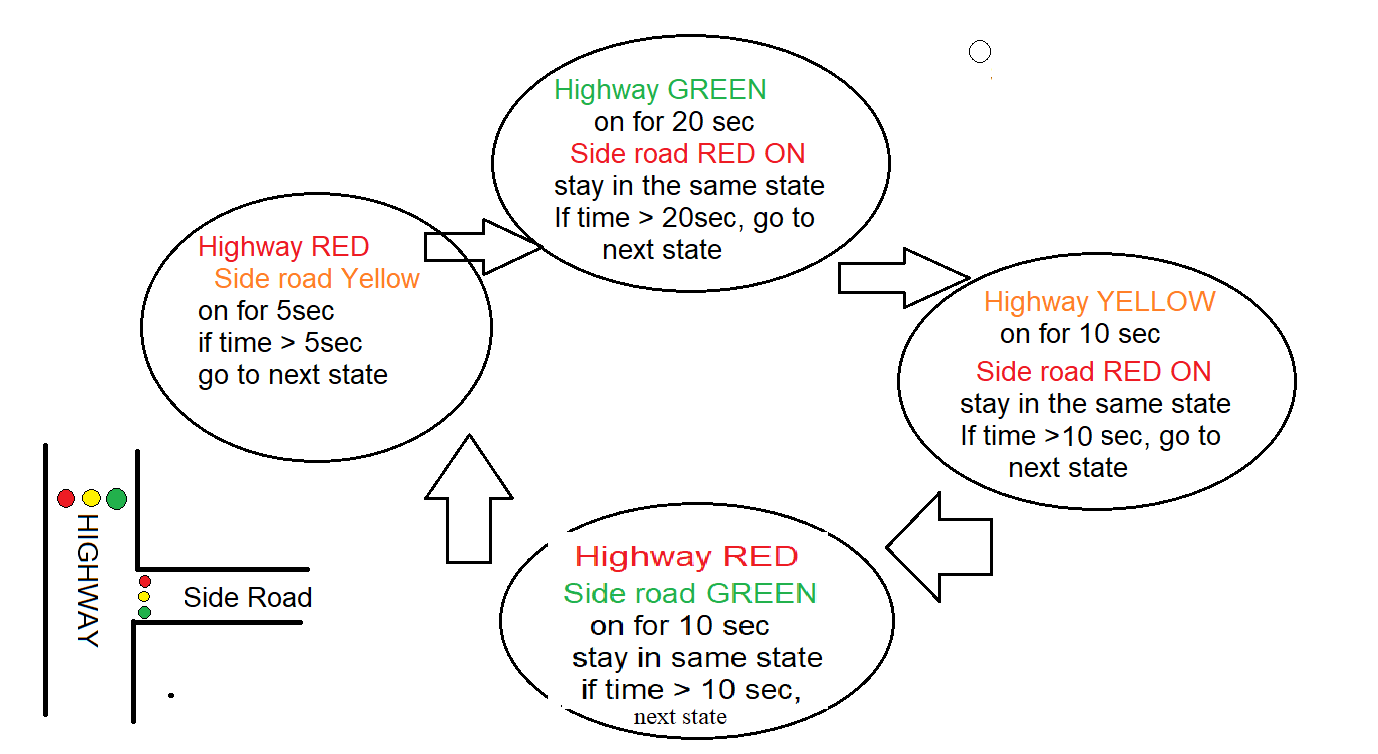

      case(state)
 s0: //make h_green on for 20sec
  begin
    if(count==20) begin
        count=0;
      state=s1; //go to other state if count expire
    end
      else
        begin
      count=count+1;
      state=s0; //wait until 20sec
      end
       end

  s1: //make h_yellow on for 10sec
  begin
    if(count==10) begin
        count=0;
      state=s2;
    end
      else begin count=count+1;
        state=s1; end
   end
 s2: //make h_red on for 10sec
  begin
    if(count==10) begin
        count=0;
      state=s3;
    end
      else begin count=count+1;
        state=s2; end
   end
 s3: //make b_yellow on for 5sec
  begin
    if(count==5) begin
        count=0;
      state=s0;
    end
      else begin count=count+1;
        state=s3; end
   end
      endcase
  end
    //determine output depends upon state
    always @(state) begin
      case(state)
        s0:
          begin
            h_green=1;
            b_red=1;
            h_red=0;
            h_yellow=0;
            b_yellow=0;
            b_green=0;
          end
        s1:
          begin
            h_green=0;
            b_red=1;
            h_red=0;
            h_yellow=1;
            b_yellow=0;
            b_green=0;
          end
       s2:
          begin
            h_green=0;
            b_red=0;
            h_red=1;
            h_yellow=0;
            b_yellow=0;
            b_green=1;
          end

        s3:
          begin
            h_green=0;
            b_red=0;
            h_red=1;
            h_yellow=0;
            b_yellow=1;
            b_green=0;
          end
      endcase
    end

  endmodule

  wire h_red, h_yellow,h_green, b_red, b_yellow, b_green;

 traffic_light L00 (rst,clk,h_red,h_yellow, h_green,b_red, b_yellow,b_green);
